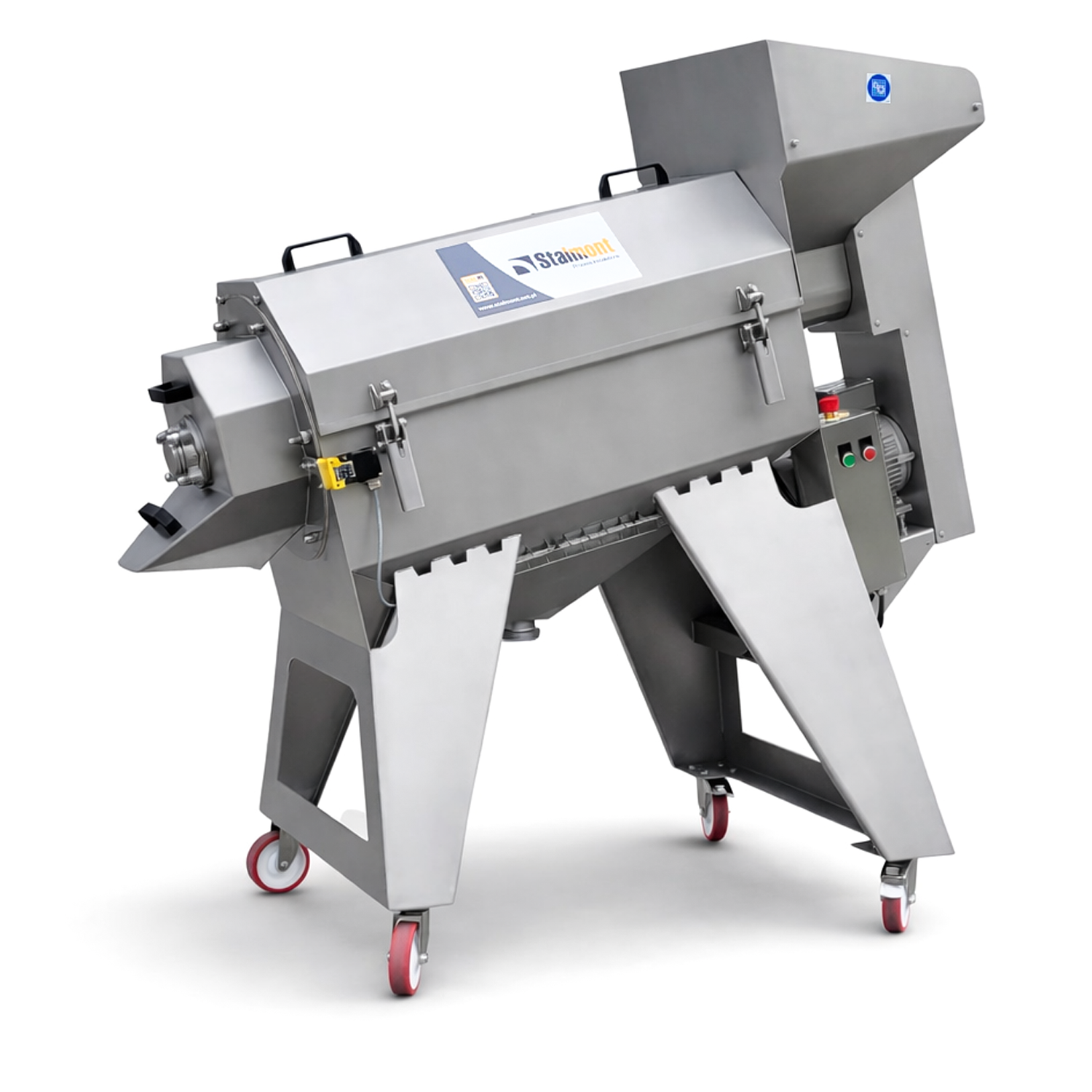

Fruit and vegetable pulping machine

The PC-1000 fruit and vegetable pulping machine is designed for efficient separation of pits and skins from the pulp. It produces a homogeneous purée that can be further used in the production of juices, jams, and fruit concentrates.

The machine is equipped with interchangeable perforated screens, allowing easy adjustment for different types of raw materials such as cherries, plums, apricots, strawberries, tomatoes, or forest fruits. The feed hopper with a screw conveyor and adjustable rubber blades ensures smooth and uniform operation.

The PC-1000 is made entirely of stainless steel, providing durability, hygiene, and easy cleaning. It can be integrated with fruit washing machines and pulp pumps, forming part of a modern and efficient fruit and vegetable processing line.

Technical Specifications

Fruit and vegetable pulping machine
Nominal capacity:	1000 kg/h
Motor power:	5,5 kW
Electrical connection:	400 V 50 Hz (3-phase)
Electrical protection:	16 A
Feeding height:	1600 mm
Material:	1.4301 / AISI304
Connection for pulp pumps:	DN 80
Pulp outlet height:	382 mm
Pit outlet height:	650 mm

Pulping Machine for Fruit and Stone Fruits, Pulping and De-stoning in One Process

🧰 Professional pulping machine for fruit and stone fruits

The pulping machine for fruit and stone fruits is designed for efficient preparation of purées from raw materials with high pulp content. The machine separates pulp from stones, skins and solid parts, making it suitable as a fruit pulping machine and an industrial pulping machine for food processing plants.

⚙️ Industrial pulping machine for continuous operation

As an industrial pulping machine, the unit is engineered for continuous operation and high throughput. Its robust construction and compatibility with processing lines ensure stable processing of large volumes of raw material and high overall production efficiency.

🍒 De-stoning machine for cherries and plums

The integrated de-stoning system enables effective removal of stones from stone fruits. The machine operates as a de-stoning machine for cherries and plums, eliminating manual pitting, reducing raw material losses and preserving high pulp quality.

🍅 Pulping machine for tomatoes and vegetable products

The machine can also be used as a pulping machine for tomatoes, enabling efficient separation of pulp from skins and seeds. This makes it ideal for the production of tomato purées, sauces and concentrates with a uniform final consistency.

🍑 Universal pulping machine for various fruits

The pulping machine is suitable for processing a wide range of fruits, including apricots, peaches, plums and cherries. As a universal pulping machine, it allows flexible adjustment of the process to the raw material type and the desired final product structure.

🏭 Key component of the production line

The pulping and de-stoning machine can operate as an integral part of a complete processing line. It works seamlessly with washers, crushers, pasteurisers and packaging systems, improving material flow and automating the production of purées and other processed products.
