Bottle filling machine

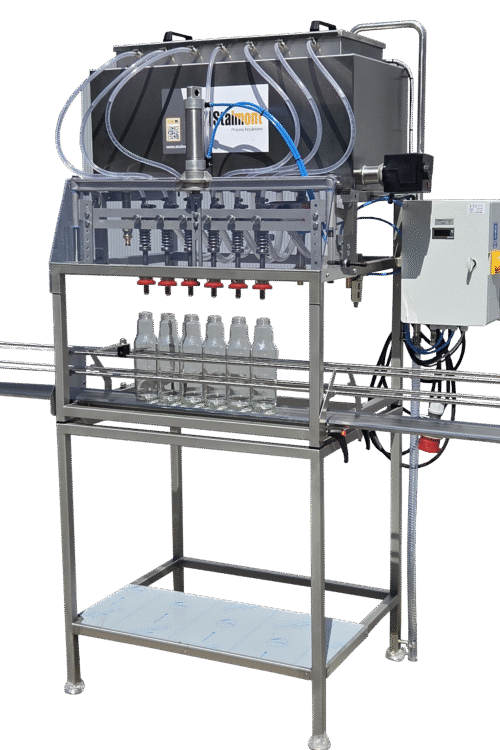

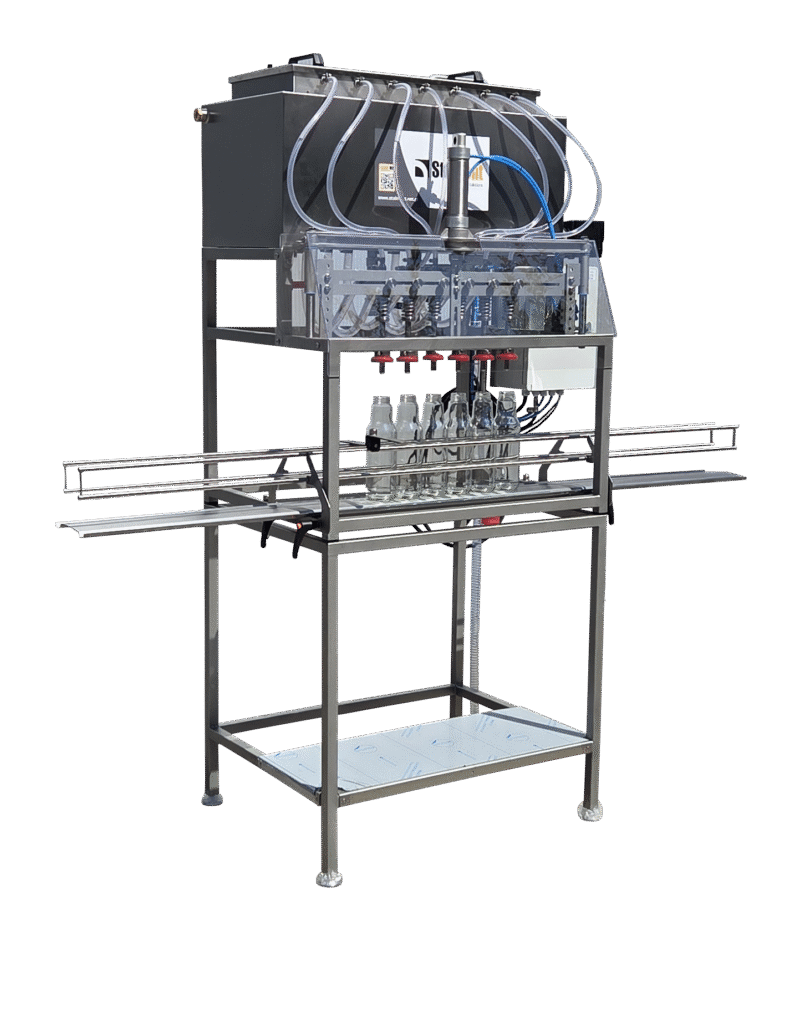

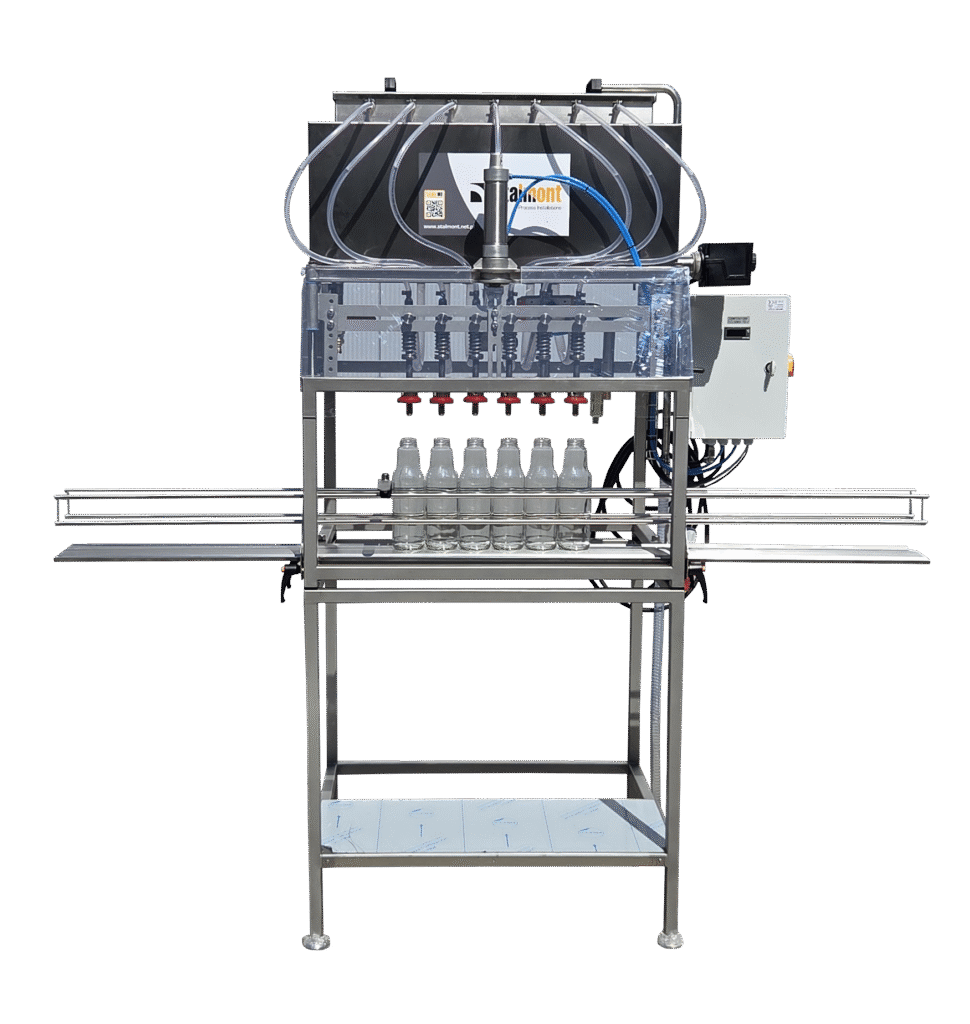

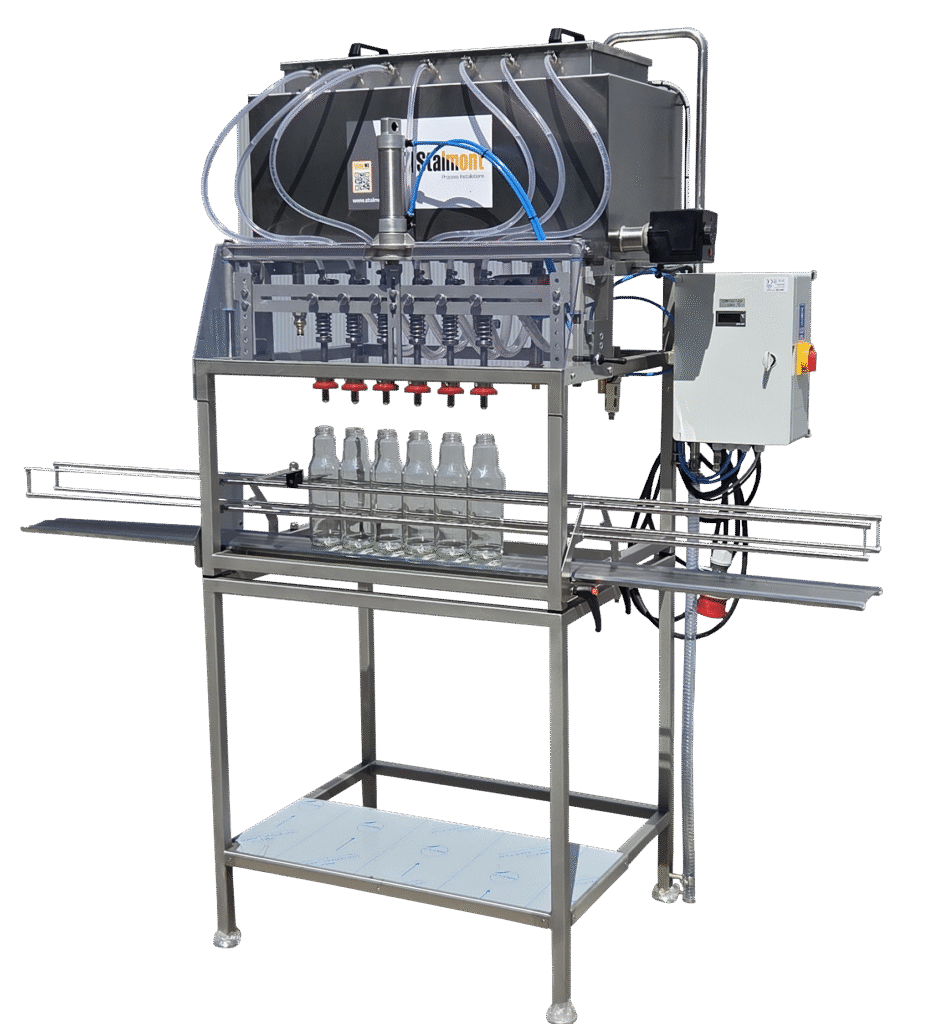

Semi-automatic bottle filler is a gravity-based machine designed for precise and hygienic filling of liquids into glass and PET containers. Equipped with 6 filling heads, it ensures high efficiency and repeatability of the process.
The gravity system guarantees even filling without product aeration, which is crucial when working with juices, beverages, syrups, or oils.
The machine features a heated tank, allowing hot filling up to 90°C. Its stainless steel construction and intuitive operation make it reliable and easy to use on a daily basis.
It is an ideal solution for small and medium-sized producers looking for an efficient and tailored liquid filling system.
Contact us
Feel free to contact us. We we will be happy to answer any questions you might have.
Technical Specifications
| Bottle Filling Machine | |
|---|---|
| Capacity: | 900 l/h |
| Number of filling heads: | 6 (fi 15mm) |
| Material | AISI 304 |
| Tank capacity: | 60 L |
| Dimensions: | 650x2000x1850 |
| Weight: | 90kg |
| Filling liquid temperature: | 5-90°C |
| Bottle height: | 100-360mm |
| Bottle diameter: | 50-180mm |
| Heater: | 6kW with temperature control |
The bottle filler is an efficient solution for precise liquid filling in production environments.
It ensures stable operation and control over key process parameters, resulting in high quality and repeatability.
Capacity up to 900 l/h allows efficient filling while maintaining dosing accuracy.
60 L heated tank with jacket ensures stable temperature and working conditions.
Level and temperature sensors provide real-time control and improve safety.
Three-way valve simplifies liquid flow control and operation.
Stainless steel AISI 304 construction ensures durability, hygiene, and resistance to production conditions.
Semi-automatic bottle filler, precise liquid filling for the food industry
What bottles can it handle?
The machine supports bottles with a height of 100–360 mm and a diameter of 50–180 mm, making it suitable for various glass and PET containers. Easy adjustment allows quick format changes. As a manufacturer, we can also customize the machine to your specific production needs.
How does the filler work?
The semi-automatic gravity filler with 6 heads ensures fast and even filling. The product flows into containers by gravity, eliminating aeration and ensuring a consistent fill level. The integrated heating tank allows hot filling up to 90°C.
What liquids is it suitable for?
Designed for low and medium viscosity liquids. Perfect for juices, beverages, cider, wine, and syrups. Hot filling capability allows direct filling after thermal processing, improving efficiency and product quality.
Industry applications
Mainly used in the food industry, especially for juices, beverages, and craft products. Ideal for small and medium-sized producers. Can operate as a standalone unit or as part of a filling line.
Key advantages
6 filling heads ensure high efficiency. The gravity system provides gentle filling without foaming. Heated tank enables operation up to 90°C. Stainless steel construction ensures durability and easy cleaning.
Why invest in this filler?
Increases production efficiency and reduces product loss thanks to precise dosing. Hot filling eliminates additional process steps and shortens production time. A practical solution for companies planning growth.
